Blade Holders

Replacement Graphtec Blade Holders

The first thing to look at when identifying or choosing a new blade for your Graphtec cutting plotter is which blade holder is currently installed in the machine as the blade is matched to the blade holder rather than the machine that it is being used with.

Unless otherwise specified at the time of purchase, all Graphtec cutting plotters are supplied with a Standard 0.9mm Blade Holder (PHP33-CB09N-HS) in the included accessory pack.

In simple terms, if your blade holder is black and blue in colour then you will need to look at 0.9mm diameter blades. If the blade holder is black and red then you will be looking for 1.5mm diameter blades.

Both 0.9mm (Black & Blue) and 1.5mm (Black & Red) blade holders work in all CE, FC and FCX Series Cutting Plotters.

Genuine Graphtec 0.9mm Blade Holders

Genuine Graphtec 1.5mm Blade Holders

graphtec php33_cb09n_hs blade holder - new

Standard 0.9mm Blade Holder

• Supplied As Standard With All FC & CE Series Machines
• Blade Holder Code: PHP33-CB09N-HS
• Blade Diameter: 0.9mm
• Built In Spring
• Blades Not Included

Compatible 0.9mm Blades
• CB09-E
• CB09-L
• CB09UB
• CB09UB-K60

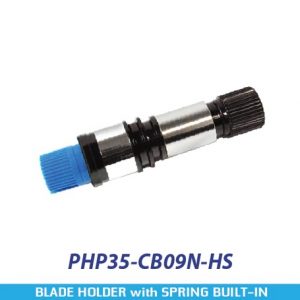

graphtec php35-cb09n-hs - premium blade holder

Premium 0.9mm Blade Holder

• Blade Holder Code: PHP35-CB09N-HS
• Blade Diameter: 0.9mm
• Built In Spring
• Steel Insert Around Body To Add Longevity
• Blades Not Included

Compatible 0.9mm Blades
• CB09-E
• CB09-L
• CB09UB
• CB09UB-K60

graphtec php33_cb15n_hs blade holder - new

Standard 1.5mm Blade Holder

• Blade Holder Code: PHP33-CB15N-HS
• Blade Diameter: 1.5mm
• Built In Spring
• Blades Not Included

Compatible 1.5mm Blades
• CB15U
• CB15U-K30
• CB15UA
• CB15UA-K30

graphtec php35-cb15n-hs - premium blade holder

Premium 1.5mm Blade Holder

• Blade Holder Code: PHP35-CB15N-HS
• Blade Diameter: 1.5mm
• Built In Spring
• Steel Insert Around Body To Add Longevity
• Blades Not Included

Compatible 1.5mm Blades
• CB15U
• CB15U-K30
• CB15UA
• CB15UA-K30
